Swagger and RPC Discoverability

Swagger/OpenAPI is excellent at documenting HTTP endpoints. In a REST API, each business operation is usually represented by a route, so Swagger naturally lists many operations.

In JSON-RPC, the HTTP surface may contain only one endpoint:

POST /rpc

Swagger can document this endpoint, but it cannot automatically infer every possible JSON-RPC method inside the request body unless the application exposes that metadata separately.

Practical Solution

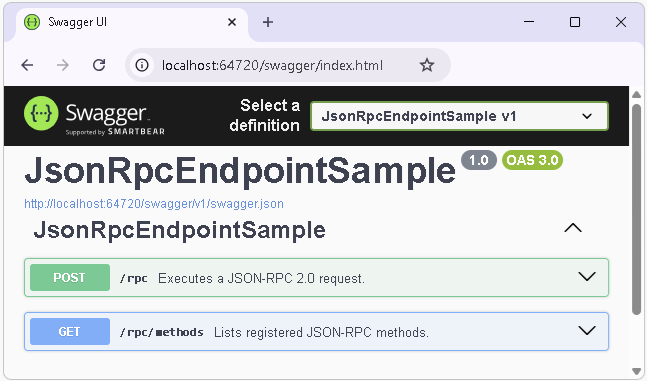

Keep Swagger for the HTTP surface and expose a separate method catalog for the RPC surface:

app.MapGet("/rpc/methods", (IEnumerable methodDescriptors) =>
{
    List methods = methodDescriptors
        .OrderBy(methodDescriptor => methodDescriptor.Method)
        .ToList();

    return Results.Ok(methods);
})
.WithName("JsonRpcMethodCatalog")
.WithSummary("Lists registered JSON-RPC methods.")
.WithDescription("Returns the discoverable method catalog for methods handled behind the single /rpc endpoint.");

The above endpoint registration uses a custom RpcMethodDescriptor class to describe each method, including its name and request/response types:

public class RpcMethodDescriptor
{
    public string Method { get; set; } = string.Empty;
    public string Description { get; set; } = string.Empty;
    public string RequestType { get; set; } = string.Empty;
    public string ResponseType { get; set; } = string.Empty;
    public string ExampleRequestJson { get; set; } = string.Empty;
}

The actual method catalog is populated by the same assembly scanning code that registers handlers, so it stays up to date without manual maintenance. The following example shows what the method catalog returned by the /rpc/methods endpoint might look like:

[
  {
    "method": "Bank.MakeDeposit",
    "requestType": "MakeDepositRequest",
    "responseType": "MakeDepositResponse"
  },
  {
    "method": "Shipment.Search",
    "requestType": "ShipmentSearchRequest",
    "responseType": "ShipmentSearchResponse"
  }
]

This makes the system discoverable without pretending that every RPC method is a separate REST endpoint:
